#include <stddef.h>
#include <stdlib.h>
#include <stdio.h>

Include dependency graph for Class.h:

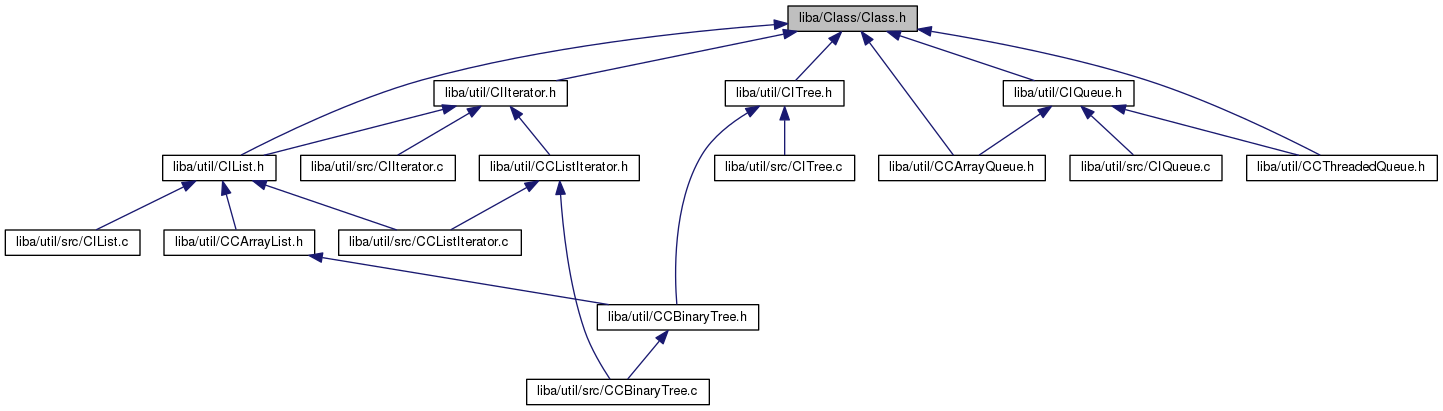

This graph shows which files directly or indirectly include this file:

Data Structures
struct	CClass
	First variables in every object's memory allocation. More...

struct	CObject
	Base class. More...

struct	CObject_VTable
	CObject's virtual table declaration. More...

struct	CInterface
	Base interface. More...

Macros
#define	CBool unsigned char

#define	CTRUE 1

#define	CFALSE !CTRUE

#define	C_DEBUG_DIAG_LEVEL 2

#define	CDefaultFree free

#define	CFree CDefaultFree

#define	CMalloc malloc

#define	C_CLASS _cc

#define	C_ROOT _rt

#define	C_VTABLE _vt

#define	C_VTABLE_OFFSET _vo

#define	C_PRINT(...) printf( __VA_ARGS__ )

#define	C_FAILED_ASSERT_HANDLE() for( ;; )

#define	C_ASSERT_VIRTUAL_MESSAGE

#define	C_ASSERT_OBJECT_MESSAGE "NULL pointer used as input\n"

#define	C_ASSERT_CAST_MESSAGE

#define	CAssert(exp, msg, file, line)

#define	C_ASSERT_VIRTUAL(method) CAssert( ((method)==NULL), CAssertVirtualMessage_, __FILE__, __LINE__ )

#define	C_ASSERT_OBJECT(object) CAssert( ((object)==NULL), CAssertObjectMessage_, __FILE__, __LINE__ )

#define	C_ASSERT_CAST(object, file, line) CAssert( (object) == NULL, CAssertCastMessage_, file, line )

#define	CObject(self) CObject_Constructor(self)

#define	CDestroy(mem) CObject_Destroy((void*) (mem))

#define	CDynamic(obj) CObject_SetFree(((struct CClass*) (obj))->C_ROOT, CDefaultFree)

#define	CFreeWith(obj, freep) CObject_SetFree(((struct CClass*) (obj))->C_ROOT, (freep))

#define	CAssertVirtual(func) C_ASSERT_VIRTUAL(func)

#define	CAssertObject(object) C_ASSERT_OBJECT((object))

#define	CCast(self_) CObjectCast_( self_, __FILE__, __LINE__ )

Typedefs
typedef void(*	CFreeType) (void *)

Functions
void *	CObjectCast_ (void super_reference, const char file_name, int line_num)

void	CVTable (void self, const void vtable)

const void *	CGetVTable (void *self_)

Variables
const char *	CAssertVirtualMessage_

const char *	CAssertObjectMessage_

const char *	CAssertCastMessage_

Macro Definition Documentation

#define C_ASSERT_CAST_MESSAGE

Value:

"Failure to cast object. Possible causes:\n"\
    "\t* [C0] Did not call interface constructor, CInterface( )\n"\
    "\t* [C1] Did not call super's constructor.\n"

#define C_ASSERT_VIRTUAL_MESSAGE

Value:

"Virtual method not linked. Possible causes:\n"\
    "\t* [A0] Class constructor did not link virtual table with CVTable\n"\
    "\t* [A1] Constructor was never called on object\n"\
    "\t* [A2] Constructor was called, but super's constructor was not called\n"\
    "\t* [A3] Virtual table function assignment is incomplete\n"

C_CLASS _cc

Used to provide consistent interface for finding virtual functions when dealing with object and interface references.

Used to back track from a pointer to an interface, to its implementing class' vtable, and the offset into that vtable where the implemented methods are located.

C_ROOT _rt

This contains a pointer to the top of an objects memory. It is used to back track to the top of an objects memory regardless of what super class reference is used. Using the above example, with a reference to Interface0 (pointer to 5'th row in memory layout table above), the C_ROOT variable can resolve the top of the memory block.

C_VTABLE _vt

Pointer to an objects vtable.

C_VTABLE_OFFSET _vo

This is used to find the offset into the virtual table where a classes virtual methods are. Using the above example, with a reference to Interface0 (pointer to 5'th row in memory layout table above), the C_ROOT variable can resolve the top of the memory block and an offset into vtable (in this case, the offset is 2). With the top of the memory block known, a pointer to the virtual table can be obtained. Moving two rows down the virtual table (third row), as specified by the offset value, we find method0.

#define CAssert	(	exp,
		msg,
		file,
		line
	)

Value:

do {                \
        (void) (exp);       \
        (void) (file);      \
        (void) (line);      \
    } while( 0 )
